Vacuum Insulation Failure Modes in Double-Wall Drinkware: What Procurement Teams Should Know

The performance promise of a vacuum-insulated tumbler or bottle hinges on a single, invisible feature: the evacuated air gap between its inner and outer walls. When that vacuum is compromised, the product's thermal retention drops dramatically, often rendering it functionally equivalent to a single-wall vessel. For procurement teams managing corporate gifting or employee welfare programs in Singapore, where brand reputation is tied to product performance, understanding the failure modes of vacuum insulation is not academic—it is a risk management imperative.

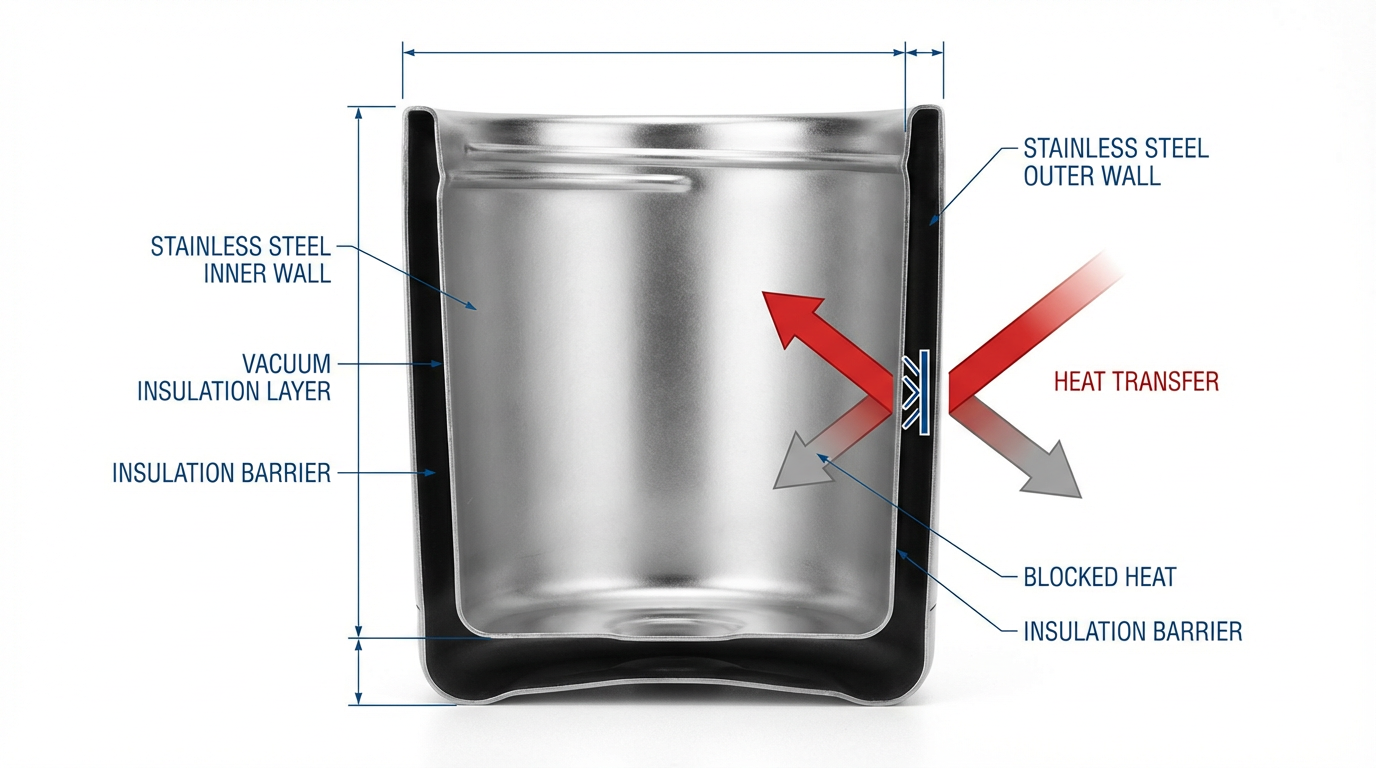

Vacuum insulation works by eliminating conduction and convection heat transfer. Air, even in small quantities, is an effective conductor of heat. By removing air from the interstitial space between the walls, manufacturers create a thermal barrier that relies solely on radiation for heat transfer, which is orders of magnitude slower. However, this performance is contingent on maintaining a vacuum pressure below 10^-3 torr. Any breach—whether from manufacturing defects, material fatigue, or mechanical damage—allows air to re-enter the gap, collapsing the insulation效能.

Manufacturing Defects: The Seal Integrity Problem

The most common failure mode originates during production: incomplete or defective sealing of the vacuum port. After the air is evacuated from the interstitial space, the port must be hermetically sealed, typically through laser welding or mechanical crimping. If the seal is incomplete, air will gradually infiltrate the vacuum chamber over time, a process known as "slow leak."

This failure mode is insidious because it does not manifest immediately. A tumbler may pass initial quality checks but degrade within weeks or months of use. For procurement teams, this creates a warranty risk window that extends well beyond the pre-shipment inspection.

How can procurement teams mitigate slow leak risk?

Specify that the supplier must conduct helium leak testing on a statistically significant sample from each production batch. Helium, due to its small atomic size, can penetrate even microscopic seal defects. A leak rate exceeding 1×10^-9 mbar·L/s indicates a compromised seal. Suppliers who cannot provide helium leak test reports should be considered high-risk.

Additionally, request thermal retention test data conducted at 6 hours and 24 hours post-production. A well-sealed vacuum flask should retain at least 85% of its initial temperature differential at 6 hours. If the supplier only provides immediate post-production data, they may be masking slow leak issues.

Material Fatigue: Stress Corrosion and Weld Degradation

Stainless steel, the most common material for vacuum drinkware, is susceptible to stress corrosion cracking (SCC) when exposed to chloride-rich environments—common in coastal cities like Singapore. If the inner or outer wall develops micro-cracks due to residual stress from the forming process, these cracks can propagate over time, eventually breaching the vacuum chamber.

This failure mode is particularly relevant for products that undergo aggressive forming processes, such as deep drawing or hydroforming, which introduce residual tensile stress into the material. Suppliers who do not perform stress-relief annealing after forming are at higher risk of producing units that fail in the field.

Scenario: Corporate Order for 2,000 Tumblers

Consider a procurement scenario where a Singapore-based financial services firm orders 2,000 branded tumblers for a year-end employee gift. The supplier provides a competitive quote and claims ISO 9001 certification. However, the procurement team does not specify stress-relief annealing or helium leak testing in the purchase order.

Six months post-distribution, employees begin reporting that their tumblers no longer keep drinks cold. The company's HR department receives complaints, and the brand's internal reputation suffers. A post-mortem analysis reveals that the supplier skipped stress-relief annealing to reduce costs, resulting in a 15% field failure rate due to stress corrosion cracking.

This scenario underscores the importance of specifying not just the end-product performance, but also the intermediate process controls that ensure long-term reliability.

Mechanical Damage: Impact and Drop Testing

Even a perfectly manufactured vacuum flask can fail if subjected to sufficient mechanical stress. Dropping a tumbler onto a hard surface can cause the inner or outer wall to deform, creating a stress concentration that breaches the vacuum seal. For this reason, procurement teams should specify drop testing as part of the acceptance criteria.

A standard drop test involves releasing the filled tumbler from a height of 1 meter onto a concrete surface, repeated three times from different orientations. Post-drop, the unit should be subjected to thermal retention testing to verify that the vacuum remains intact. Suppliers who cannot provide drop test data are likely producing units with marginal structural integrity.

Verification Protocols for Procurement Teams

To protect against vacuum insulation failure, procurement teams should include the following verification protocols in their purchase orders:

• Helium Leak Testing: Require leak test reports for a minimum of 1% of the production batch, with a maximum allowable leak rate of 1×10^-9 mbar·L/s.
• Thermal Retention Testing: Specify that units must retain at least 85% of their initial temperature differential at 6 hours, tested at 24 hours post-production to catch slow leaks.
• Stress-Relief Annealing: Confirm that the supplier performs stress-relief annealing after forming to minimize residual stress and reduce the risk of stress corrosion cracking.
• Drop Testing: Require drop test data demonstrating that units can withstand a 1-meter drop onto a hard surface without vacuum compromise.
• Batch Traceability: Ensure that each unit carries a batch code that allows for traceability in the event of field failures.

By specifying these controls, procurement teams can significantly reduce the risk of vacuum insulation failure and protect their organization's brand integrity.
